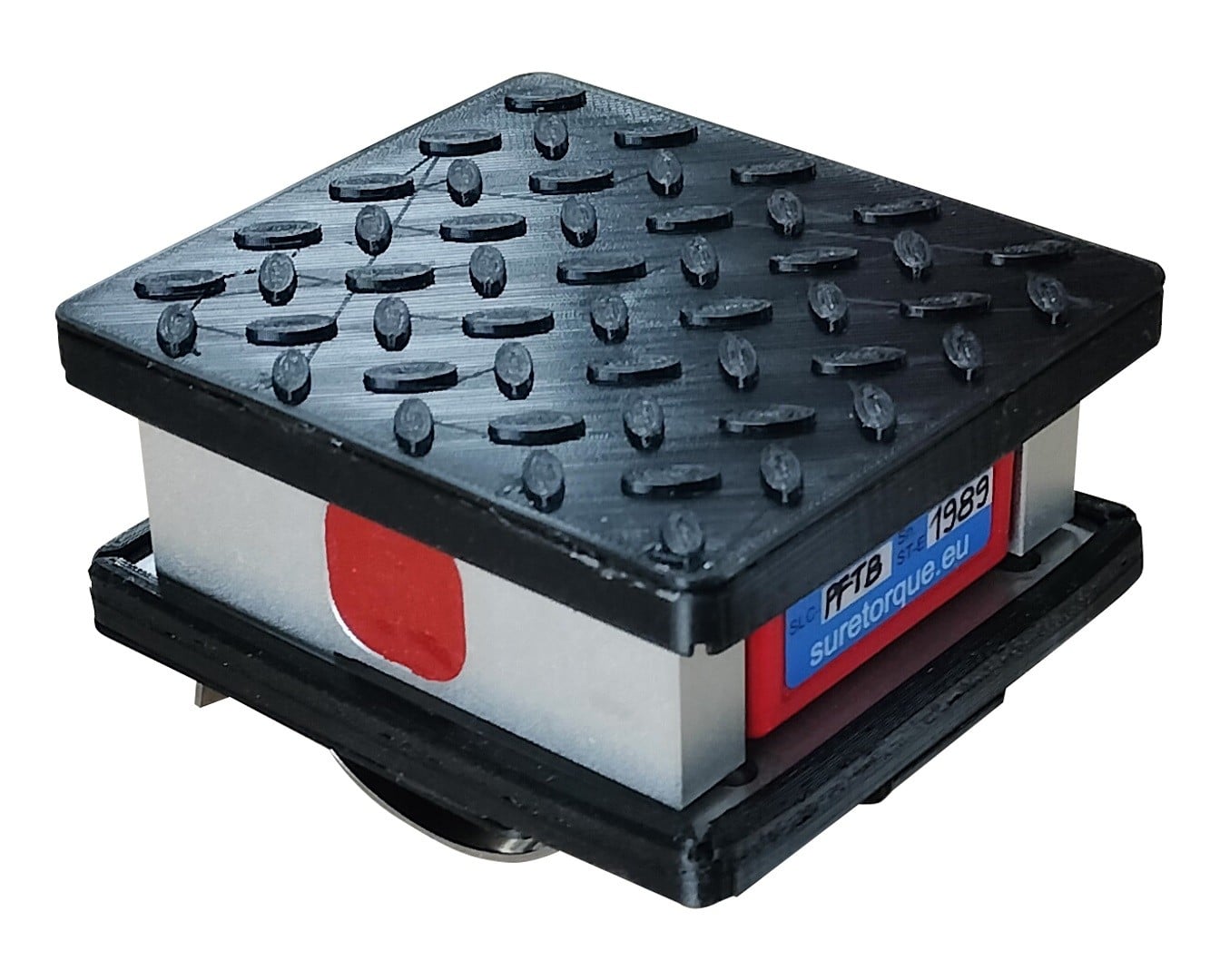

Pedal Force Tester
The SLC-PFT force meter is a wireless load cell for testing working loads on any kind of vehile pedals
• Small, handy, wireless
• Force-time graph drawing and saving
• Instant range analysis with colours
• Connectivity of up to 7 load cells / smartphone (with the SmartLoadCell_multi application)
• High storing capacity on the smartphone
• Graph zooming and scrolling in the history
• Adding comment to the results before saving
• Free Android application
• Included pc software
• 3 years warranty
| Included accessories | NA |
| Smartphone requirement | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
| Android version | Android 7 or higher |
| Measuring range | 150 kg |
| Units of measurement | Kg, N, Lbf |
| Displayed values | Actual, Max1, (Max2), force-time graph |
| Accuracy | +/- 0,2% F.S. |
| Safe Overload | 120% |
| Maximum measuring frequency | 1200 Hz (0.83 ms) |
| Range analysis | Yes – In range / under range / over range, with Over Range Alarm function |
| Capable closure types | NA |
| Maximum sample size | NA |
| Calibration kit | not available |
| Operation time | 12 hours |
| DC supply | Micro USB |
| Bluetooth range | 20-40 m on air |
| Included software | Android application, Data manager for PC |
| Memory | Thousands of results (phone memory) Maximum length of recordings: 5000 points |
| Stored data’s | Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date |
| Resistance grade | IP 65 |
| Language | English |
| Dimensions: Footprint / Height | 85x75x38 mm |
| Net weight | 560 g |
| Shipping packaging | Heavy duty waterproof case |
| Shipping dimensions | 25 x 16 x 9 cm |
| Shipping weight | 1 kg |
| Country of Manufacture | Hungary |
| Warranty | 3 years |
SmartLoadCell has 4 different measuring modes. Relevant modes for this application:

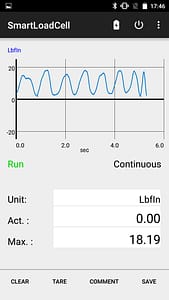

Continuous mode
It is recommended to use MAX LIMIT setting with sound signal for using for torque control on on torque torque wrench
Results:
What to do with your results?
- Add comments
- Save
- View from the history – diagram can be zoomed and scrolled
- Send to pc on Bluetooth, wifi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with diagrams
- make statistical analysis of the results
- create report from the individual results or from the statistical analyses

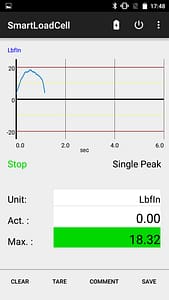

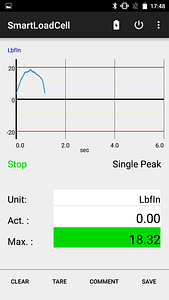

Single/Double peak mode

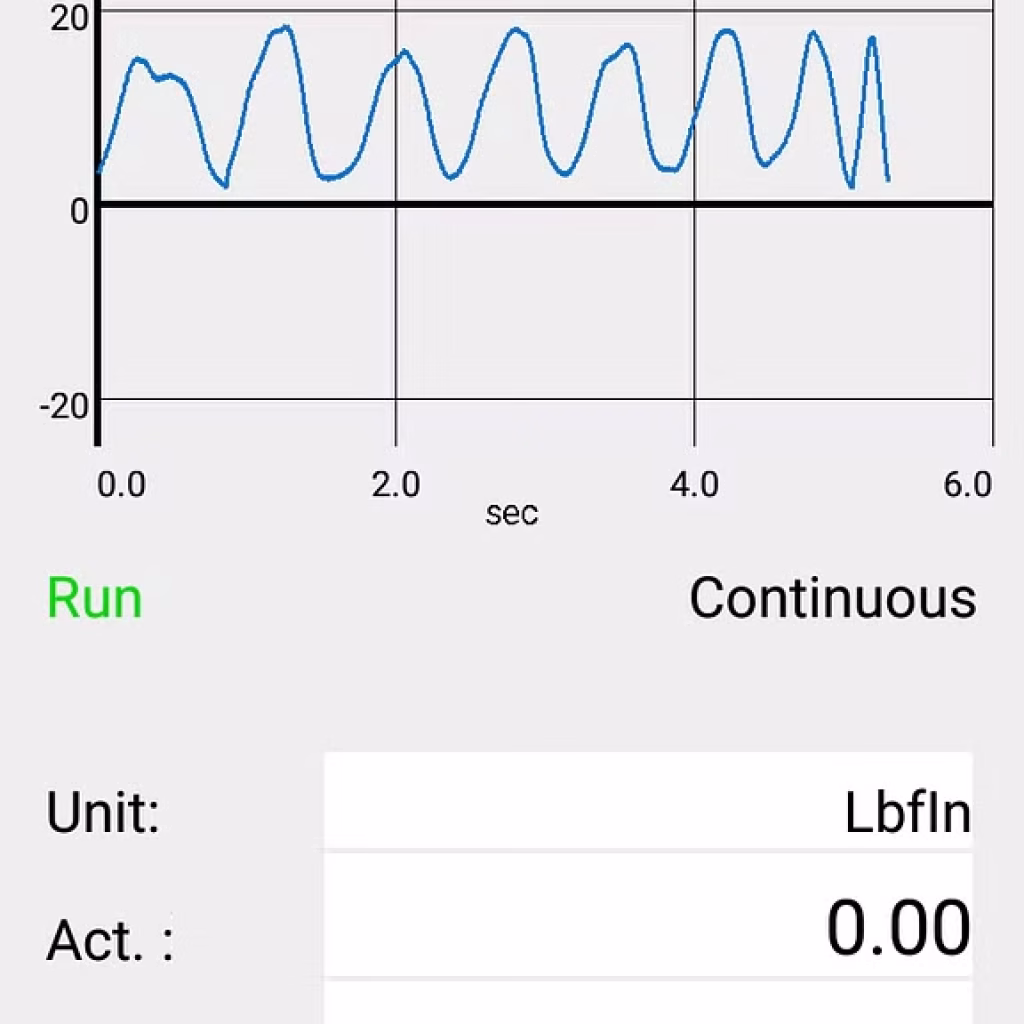

Continuous mode
Results:
What to do with your results?
- Add comments
- Save
- View from the history – graph can be zoomed and scrolled
- Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with diagrams
- make statistical analysis of the results
- create report from the individual results or from the statistical analyses
