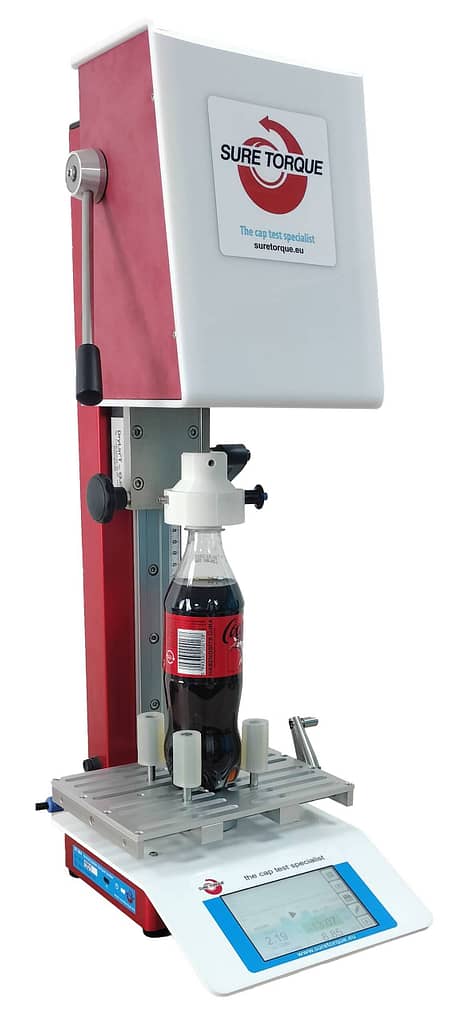

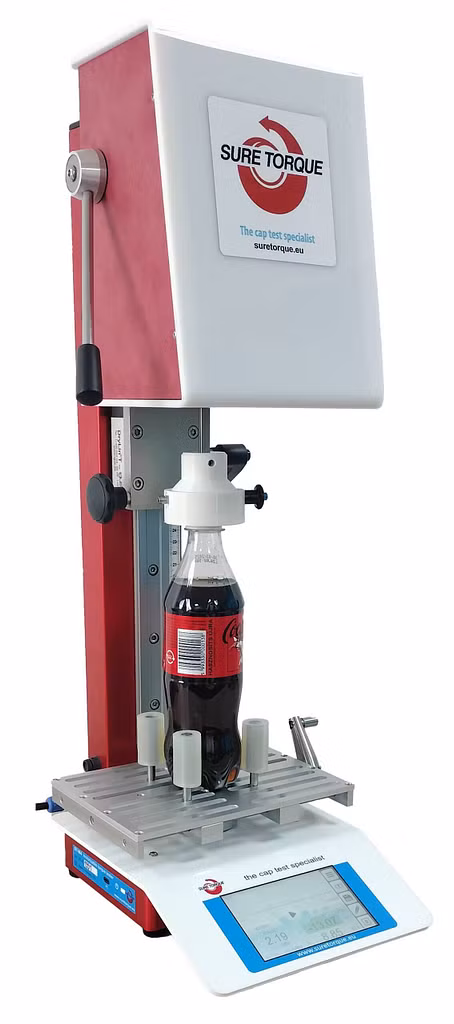

ST-M4 Motorizable Cap Torque Tester
The unit offers the most advanced manual torque testing solution on the market with the option to upgrade it to a motorized semi-automated torque tester.

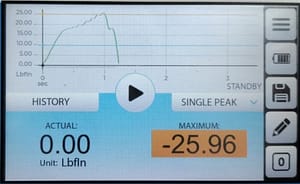

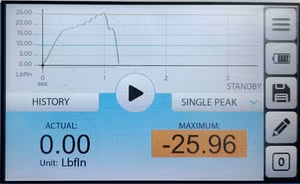

The mobile phone display allows the monitoring of the release and application processes on torque-time graph
Real time data collection is possible with the included data logger program
Application
Industries: Beverage, Food, Pharmaceutical, Packaging
Areas: Laboratory, Production
Applications
Benefits
- MOTORIZABLE – can be transformed to motorized torque tester with a simple kit
- Simple operation – handy as HMI
- Extra large sample table for even 5 liter bottles
- Quick release sample fixing
- Torque-time graph drawing and saving
- High storing capacity
- Included pc software
- Resistance grade: IP65 (water resistant)
- 3 years warranty
Additional Information
| Included accessories | No |
| Smartphone requirement | No |
| Android version | No |
| Measuring range | -10Nm – +10 Nm (cca +/- 88.5 lbfIn) |
| Units of measurement | LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm |
| Displayed values | Actual, Max1, Max2, torque-time graph |
| Accuracy | +/- 0,25% F.S. |
| Safe Overload | 120% |
| Maximum measuring frequency | 400 Hz (2.5 ms) |
| Range analysis | No |
| Capable closure types | any kind of twist cap |
| Maximum sample size | Ø200 mm |
| Calibration kit | available |
| Operation time | 4-8 hours |
| DC supply | DC 5V with included AD110/230 V adapter |
| Bluetooth range | No |
| Included software | Data logger, Data manager for PC |
| Memory | Thousends of datas’ |
| Stored data’s | measurement nr, peak results, date, time, graph, instrument serial number, customer added comment |
| Resistance grade | IP 65 |
| Language | English |
| Dimensions: Footprint / Height | 210 x 250 x 90 mm |
| Net weight | 2.5 kg |
| Shipping packaging | Heavy duty waterproof case |
| Shipping dimensions | 420 x 350 x 190 mm |
| Shipping weight | 5 kg |
| Country of Manufacture | Hungary |
| Warranty | 3 years |
Results
What to do with your results?
- Add comment and save
- View from the history
- Transfer to PC on Bluetooth, WiFi, USB or RS232 cable
- Send to data logger pc program (included)
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with graphs
- create reports from the individual results or from the statistical analyses
