TPL Top Load Force tester

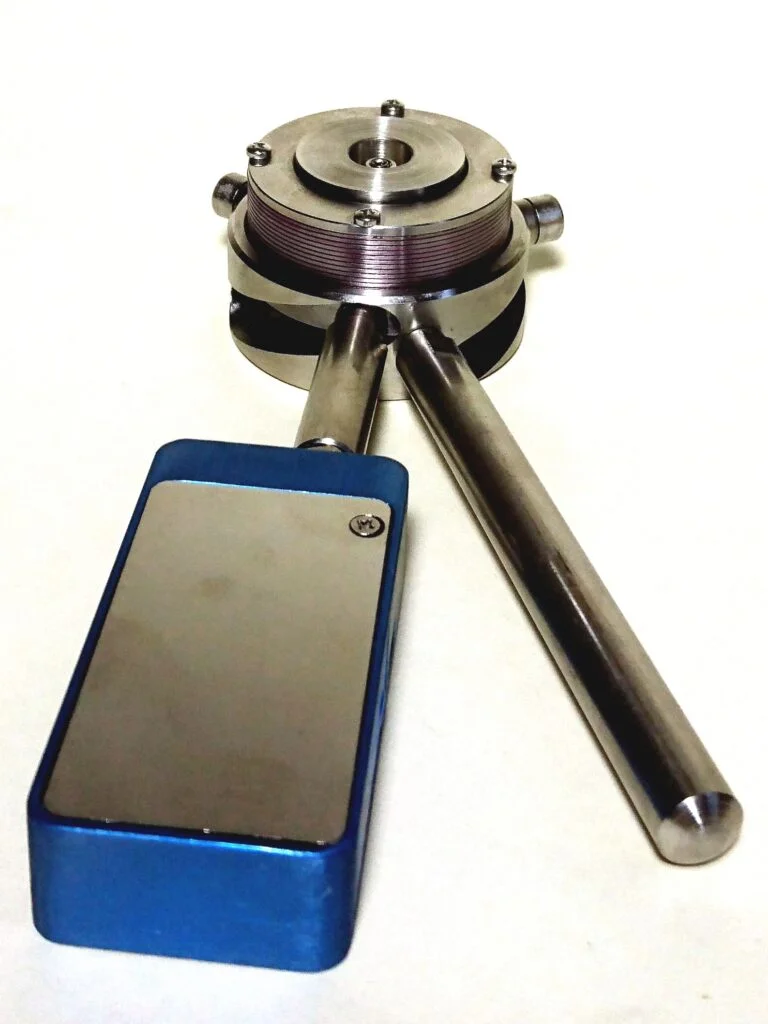

TPL1 Top Load Force meter makes it easy to check the capper head’s top load without disassembling it from the capper machine.

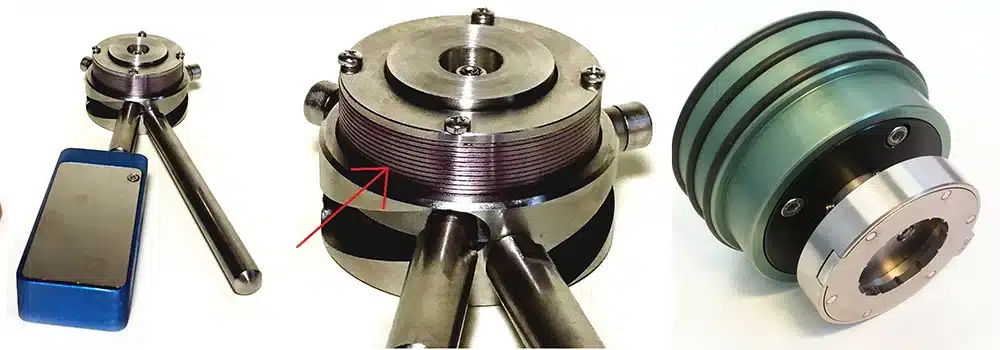

By moving the 2 handles the height of the TPL1 unit can be increased/decreased. So the capper head’s top load spring can be squeezed, and the force can be measured. The compression of the spring can be controlled on the mm-scaled rings on the tester, or digitally (by the TPL3 and TPL4 units).
SmartLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.
Top Load tester is shipped calibrated, with trackable calibration certificate.
- Small, handy, wireless
- Force-time graph drawing and saving
- Range analysis
- High storing capacity on the smartphone
- Graph zooming and scrolling in the history
- Adding comment to the results before saving
- Free Android application
- Included pc software
- 3 years warranty
| Included accessories | – |
| Smartphone requirement | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
| Android version | Android 4.4 or higher |
| Measuring range | 30 kg or 100 kg |
| Units of measurement | Kg, N, LbfIn |
| Displayed values | Actual, Max1 force-time graph |
| Accuracy | 0,25% F.S. |
| Safe Overload | 120% |
| Maximum measuring frequency | 400 Hz (2.5 ms) |
| Range analysis | Yes – In range / under range / over range, with Over Range Alarm function |
| Capable closure types | – |
| Maximum sample size | Any |
| Calibration kit | available |
| Operation time | 10-12 hrs |
| DC supply | Micro USB |
| Bluetooth range | 20-40 m on air |
| Included software | Android application, Data manager for PC |
| Memory | Thousands of results (phone memory) Maximum length of recordings: 5000 points |
| Stored data’s | Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date |
| Resistance grade | IP65 |
| Language | English |
| Dimensions: Footprint / Height | 120x120x65 mm |
| Net weight | 1 kg |
| Shipping packaging | Heavy duty waterproof case |
| Shipping dimensions | No |
| Shipping weight | No |
| Country of Manufacture | Hungary |
| Warranty | 3 years |

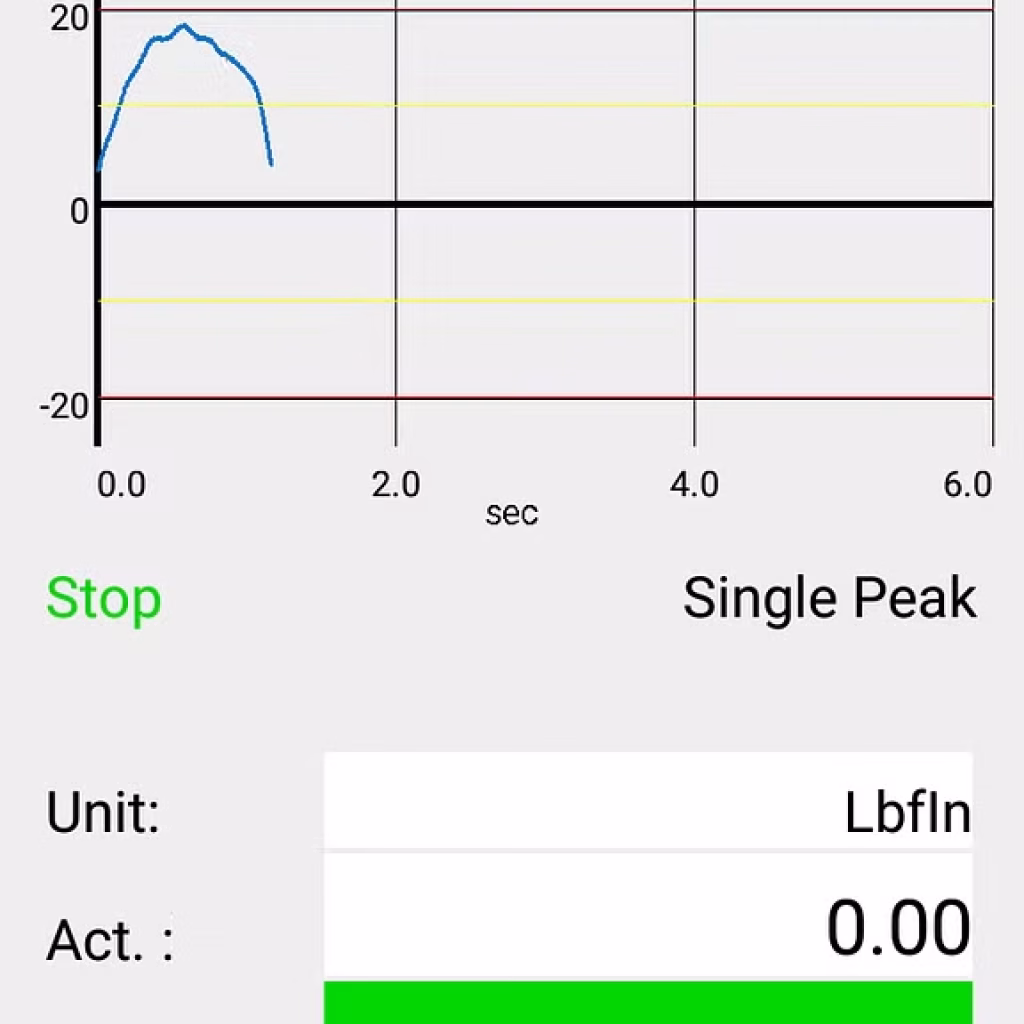

Recommended measuring mode: Single peak mode
Results:
What to do with your results?
- Add comments
- Save
- View from the history – graph can be zoomed and scrolled
- Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with graphs
- statistical analysis of the results
- create report from the individual results or from the statistical analyses
