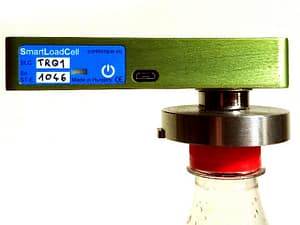

TRQ1 Cap Torque Tester
Universal handheld torque tester for closure torque testing and capper head chuck torque testing on the capper machine. Can be ordered with various test fitments for the different closure types and applications:

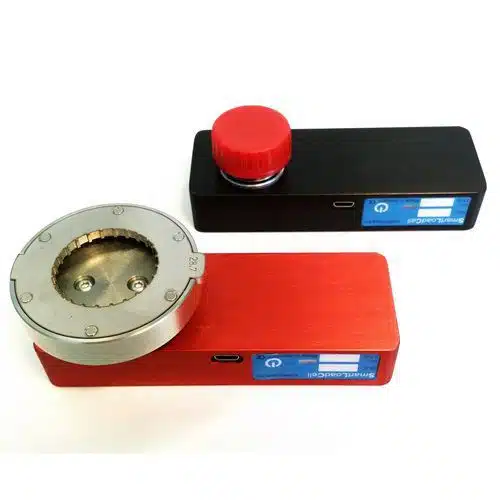

Cap testing fitment – contains 2 parts:
1., A universal support that holds the cap fitments. Cap fitments are held by magnets for quick interchange.
2., Cap fitments: In any size up to D40 mm. with 12 serrations ((capable of any number of serrations that is a multipe of 12).
Over 40 mm cap diameter or for special closures custom cap adapters are available.
Cap fitments are easy to change without any tool, as they are held by magnets.
Neck thread fitments for any kind of thread type for testing the capper head chuck torque on capper machines.
Application
Industries: Beverage, Food, Pharmaceutical, Packaging
Areas: Laboratory, Production, Maintenance
- Small, handy, wireless
- Wide range of tests

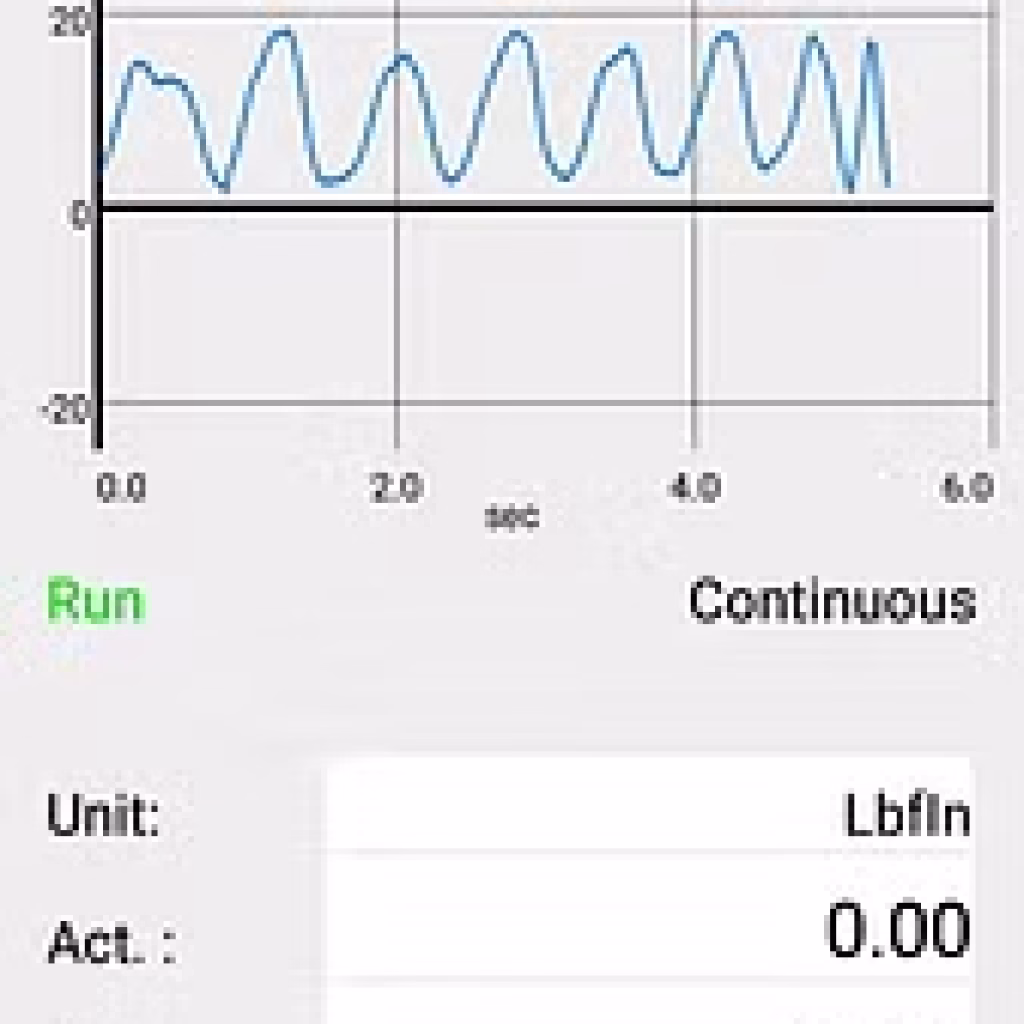

- Torque-time graph drawing and saving
- Range analysis
- High storing capacity on the smartphone
- Graph zooming and scrolling in the history
- Adding comment to the results before saving
- Free Android application
- Included pc software
- 3 years warranty
Included accessories | 1 cap fitment support + 1 cap fitment OR 1 neck adapter |
| Smartphone requirement | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
| Android version | Android 4.4 or higher |
| Measuring range | -10Nm – +10 Nm (cca +/- 88.5 lbfIn) |
| Units of measurement | LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm, mV/V |
| Displayed values | Actual, Max1, (Max2), torque-time graph |
| Accuracy | +/- 0,25% F.S. |
| Safe Overload | 120% |
| Maximum measuring frequency | 400 Hz (2.5 ms) |
| Range analysis | Yes – In range / under range / over range, with Over Range Alarm function |
| Capable closure types | Any kind of serrated twist cap |
| Maximum sample size | Any |
| Calibration kit | available |
| Operation time | 12 hours |
| DC supply | Micro USB |
| Bluetooth range | 20-40 m on air |
| Included software | Android application |
| Memory | Thousands of results (phone memory) Maximum length of recordings: 5000 points |
| Stored data’s | Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date |
| Resistance grade | IP 65 |
| Language | English |
| Dimensions: Footprint / Height | 111x40x20 mm |
| Net weight | 0,23 kg |
| Shipping packaging | Heavy duty waterproof case |
| Shipping dimensions | No |
| Shipping weight | No |
| Country of Manufacture | Hungary |
| Warranty | 3 years |
SmartLoadCell has 4 different measuring modes. Relevant modes for this application:

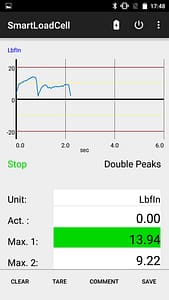

For closure torque testing:
single or double peak mode

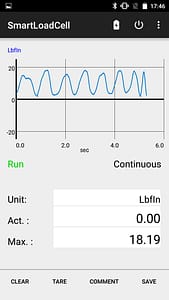

For chuck calibration:
continuous mode
Results:
What to do with your results?
- Add comments
- Save
- View from the history – graph can be zoomed and scrolled
- Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with graphs
- statistical analysis of the results
- create report from the individual results or from the statistical analyses
