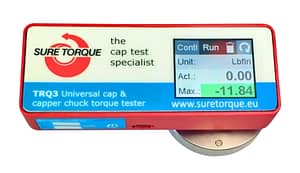

TRQ3 Cap Torque Tester
Universal handheld torque tester for closure torque testing and capper head chuck torque testing on the capper machine. Can be ordered with various test fitments for the different closure types and applications:

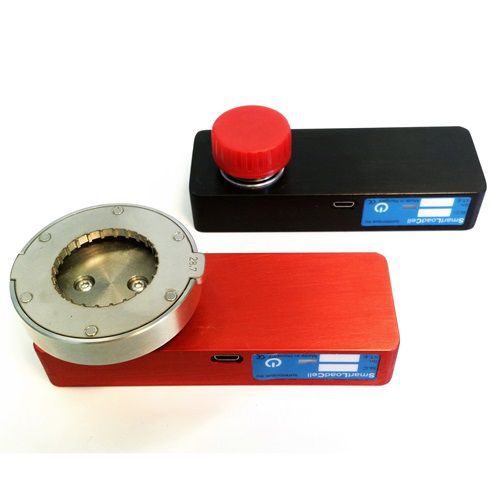

Cap testing fitment – contains 2 parts:
1., A universal support that holds the cap fitments. Cap fitments are held by magnets for quick interchange.
2., Cap fitments: In any size up to D40 mm. with 12 serrations ((capable of any number of serrations that is a multipe of 12).
Over 40 mm cap diameter or for special closures custom cap adapters are available.
Cap fitments are easy to change without any tool, as they are held by magnets.
Neck thread fitments for any kind of thread type for testing the capper head chuck torque on capper machines.
SmartLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.
Torque tester is shipped calibrated, with traceable calibration certificate
Application
Industries:
Beverage, Food, Pharmaceutical, Packaging
Areas:
Laboratory, Production, Maintenance
- Small, handy
- One-button-operation
- Instant range indication with colours
- Can be used both as stand alone and with bluetooth connection with a smartphone
- High storing capacity on the smartphone
- 3 years warranty
| Included accessories | 1 cap fitment support + 1 cap fitment OR 1 neck adapter |
| Smartphone requirement | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
| Android version | Android 4.4 or higher |
| Measuring range | -10Nm – +10 Nm (cca +/- 88.5 lbfIn) |
| Units of measurement | LbfIn, LbfFt, Nm, dNm, Ncm, kgfcm, mV/V |
| Displayed values | Actual, Max1, (Max2), torque-time graph |
| Accuracy | +/- 0,25% F.S. |
| Safe Overload | 120% |
| Maximum measuring frequency | 400 Hz (2.5 ms) |
| Range analysis | Yes – In range / under range / over range, with Over Range Alarm function |
| Capable closure types | Any kind of serrated twist cap |
| Maximum sample size | Any |
| Calibration kit | available |
| Operation time | 6-8 hours |
| DC supply | Micro USB |
| Bluetooth range | 20-40 m on air |
| Included software | Android application |
| Memory | Thousands of results (phone memory) Maximum length of recordings: 5000 points |
| Stored data’s | Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date |
| Resistance grade | IP 65 |
| Language | English |
| Dimensions: Footprint / Height | 113x44x20 mm |
| Net weight | 0,25 kg |
| Shipping packaging | Heavy duty waterproof case |
| Shipping dimensions | No |
| Shipping weight | No |
| Country of Manufacture | Hungary |
| Warranty | 3 years |
For closure torque testing:

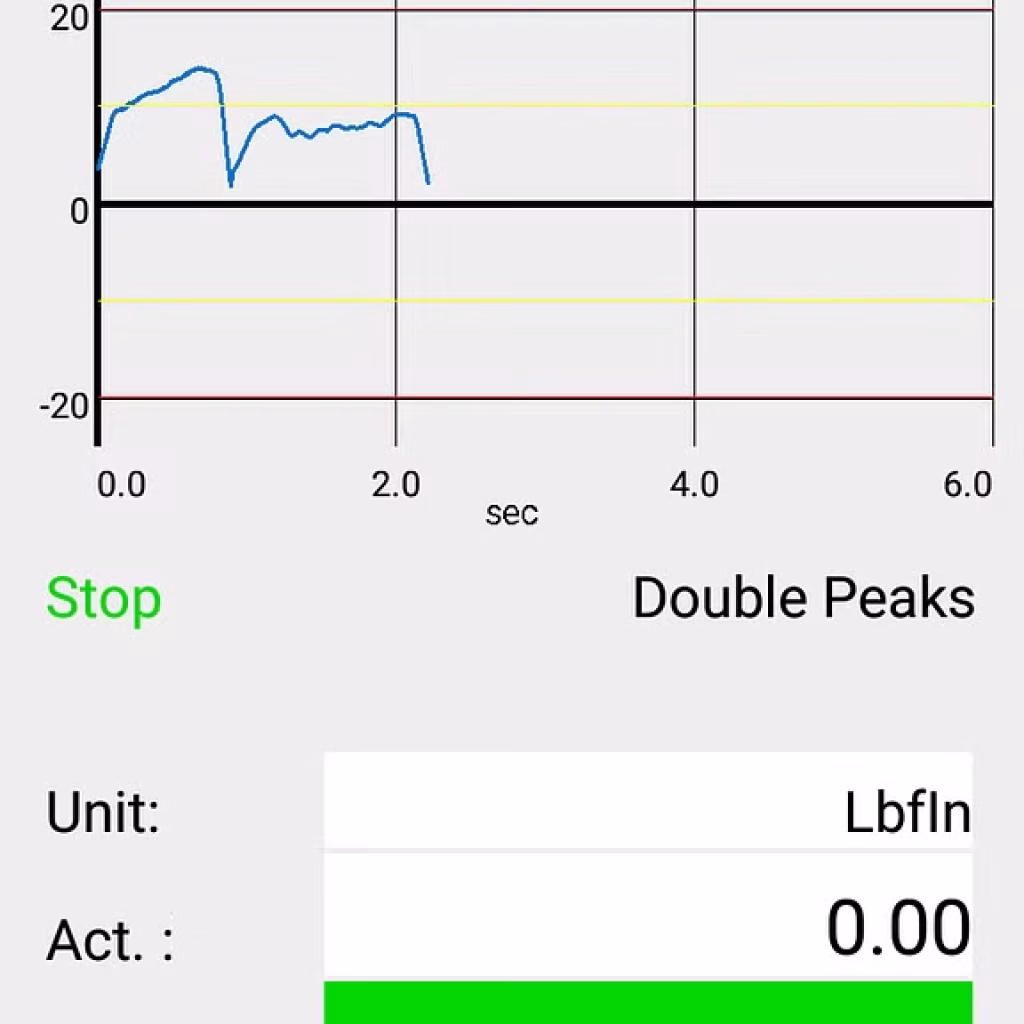

single or double peak mode
For chuck calibration:

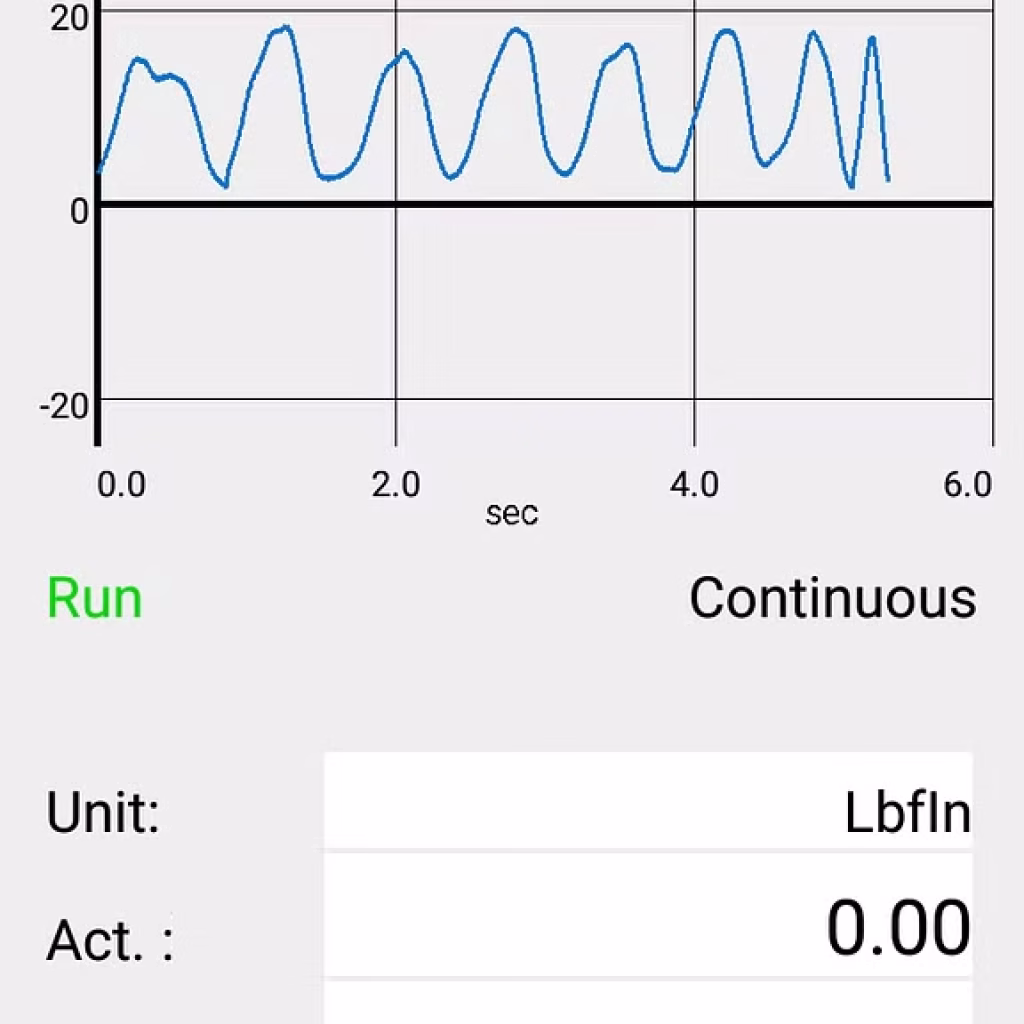

continuous mode
Results:
Measured results can be saved to the memory of an Android smartphone (or tablet), if connected over Bluetooth. Further options on the smartphone:
- Add comment and save
- View from the history
- Transfer to PC on Bluetooth, WiFi, USB or RS232 cable
- Send to data logger pc program (included)
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with graphs
- create reports from the individual results or from the statistical analyses
