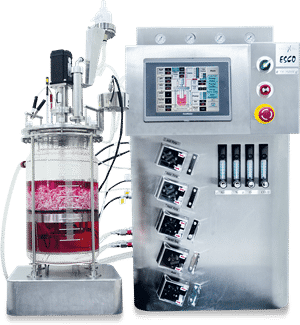

VacciXcell™ Hybrid Bioreactor

The VacciXcell Hybrid Bioreactor is a unique bioreactor system that supports both adherent and suspension culture. It applies the stir principle for suspension culture and the tide motion principle for adherent culture.

The advantage of using the VacciXcell hybrid bioreactor is its multi-functionality. In a start-up or R&D environment, determining which type of culture would yield the desired product the most is essential. The VacciXcell hybrid bioreactor gives its users exactly that option by being able to try out four (4) different types of culture namely: adherent culture using macro carrier, adherent culture using microcarrier in a stirred tank environment, suspension culture and fermentation. By being able to do the design of experiment (DOE) using these four types of culture in one system, data gathering and
analysis would be easier and more efficient, resulting in lower total cost and shorter process development period.

Key Features:

• Supports adherent culture, suspension culture or fermentation (only one type of culture can be used at a time)
• Can run in batch, fed-batch, and perfusion modes
• Automated control of pH, DO, aeration, foaming, temperature, agitation, and level
• Glass water jacketed vessel heats to 37ºC in just 30 minutes
• Inoculation and sampling in a closed system
• Working volume of up to 7 L
• Accommodates up to 11 g of BioNoc™ II macrocarriers
• Touch Screen HMI Controller. One touch screen HMI controller can be connected and control up to four (4) utility stations making DOE recording and analysis easier
• Multiple-use system that can easily transition to CelCradle™ single-use bioreactor
