Noise & Dust

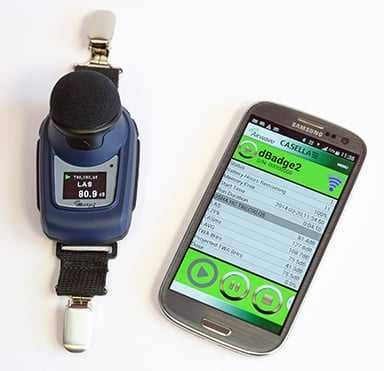

DBADGE2 PERSONAL NOISE DOSIMETER
The dBadge2, dBadge2 Plus with audio recording and dBadge2 Pro with audio recording and real time octave band frequency analysis are the latest development in personal noise dosimeters. The varying models all feature Bluetooth® 4.0 low energy wireless connectivity which connect to a tablet or smartphone via the Airwave App. This means users can remotely start a measurement, stop a measurement run, monitor the battery life and instrument memory, check measurement progress and alarms, all without disturbing the worker. This minimizes chances of gathering corrupted data and maximizes the Health & Safety professional’s productivity. Like the iconic dBadge personal noise dosimeter, dBadge2’s concept is to capture every possible noise exposure related parameter during a measurement run, then to make it available for download and analysis. The user only has to choose the most relevant parameters to display on the screen from ISO, OSHA, MSHA and ACGIH set ups.
Feature:
- Wireless connectivity via Bluetooth® 4.0 low energy
- Airwave App connects to smartphones and tablets
- Multiple ‘simulated’ dosimeters
- Colour display
- Motion sensor
- 1 second time history profiling
- Pause function available
- Optional recording of audio events
- Optional octave band frequency analysis
- Updated Insight Plug-in with advanced noise analysis features

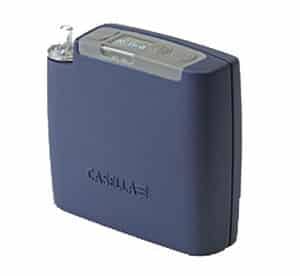

Apex2 Air Sampler Pump
The Apex2 range are the new generation of personal sampling pumps. The pumps offer class beating performance alongside a slim ergonomic design. The addition of Bluetooth® Low Energy Connectivity means you can monitor your sampling from your smartphone or tablet without disturbing the worker. You have the option to email run data alongside with photos or notes, to make your reporting easier.
Key Feature:
- Bluetooth® Low Energy Wireless Connectivity
- Airwave App for Smartphones or Tablets
- Slim Design
- Long Battery Life
- Motion Sensor Available
- Outstanding Performance
- Full Colour Screen Display

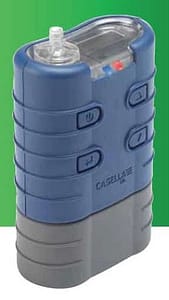

Tuff Air Sampling Pump
The TUFF personal sampling pumps cover a range of applications for the monitoring of dusts, fumes gases and vapours. Ergonomically designed to suit harsh environments the TUFF offers reliability and longevity in the field.
Casella offers a range of personal sampling pumps, accessories and consumables to suit individual applications. If you need guidance on a particular hazardous material www.airsamplingsolutions.com will aim to find a relevant method and Casella equipment you need.
Key Feature:
- Robust and reliable design for harsh environments
- Visible replaceable inlet filter
- Diagnostic monitoring of pump and battery service life
- Intuitive user interface and menu
- High intensity status/alarm LED’s
- Low flow capability using adaptors
- Advanced programming capabilities (Pro variants)

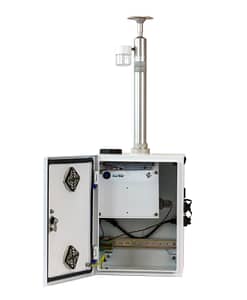

DustTrak Environmental Monitor 854301-1
Model Number: 854301-1
The DustTrak Environmental Monitor is an air monitoring system built to house DustTrak photometer models 8540 or 8543. DustTrak’s early detection features allow quick response to exposure concerns. This system is built upon proven DustTrak technology that thousands of people use every day.
The DustTrak environmental monitor is a real-time supplement to Federal Reference Method (FRM) data collection that can be deployed remotely quickly. It is on the South Coast Air Quality Management District pre-approved list of instruments for Rule 1466. MCERTS certified models available for PM10, PM2.5, and both PM10 and PM2.5 in the UK.
Product Details
Whether you work at a construction site, engineering firm or manage the aftermath of wildfires, TSI’s DustTrak Environmental Monitor is compatible with a variety of accessories, allowing you to collect the data that matters.
- Environmental Consultants and Engineering Firms — Obtain real-time, near-reference data for environmental monitoring. This instrument is compatible with a variety of sensors to detect volatile organic compounds (VOCs), gases, wind speed and more.
- Construction — Measure dust while minimizing downtime. The Environmental DustTrak monitor can help keep your project on track. The instrument is field serviceable, contains replaceable photometers and has a long pump life. Monitor your project 24 hours a day, 7 days a week, 365 days a year.
- Emergency Responders — Monitor air pollution after wildfires and other environmental disasters with real-time alerts. The Environmental DustTrak monitor can provide actionable data, which can assist decision makers in deploying personnel and resources.
Applications
- Outdoor environmental monitoring
- Monitoring for a Community Air Monitoring Plan (CAMP)
- Fugitive emissions monitoring
- Site perimeter monitoring
- Brownfields/remediation monitoring
- Fence-line monitoring
- Dust control operations
- Environmental research studies
- Construction site monitoring
- Harsh industrial environmental monitoring
- Urban pollution studies
There are a number of model configurations available for the DustTrak Environmental Monitor System. Please refer to the table below:
| Model Number | DustTrak Monitor Description | 24 VDC Main Power Supply | 300 Watt 24 VDC Power Supply w/ Heater |
| 854001-1 | Single Channel | X | |
| 854002-2 | Single Channel | X | |
| 854301-1 | DRX Version | X | |
| 854302-2 | DRX Version | X | |
| 854001-M1 | MCERTS PM2.5 | X | |
| 854201-M1 | MCERTS PM10 | X | |
| 854301-M1 | MCERTS DRX | X |
Features & Benefits
- Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5 Respirable, PM10 and total PM size fractions
- Minimal set-up
- New tri-pod mount capability
- Easy to use custom alarm settings for alerts anytime, anywhere
- Perform in-line gravimetric analysis for custom reference calibrations
- Aerosol concentration range 0.001 to 150 mg/m 3
- Environmentally protected and tamperproof with environmental enclosure
- MCERTS certified models now available for PM2.5, PM10 and total PM, respectively
- On the South Coast AQMD pre-approved list of instruments for Rule 1466
- Automatic differential calculations between upwind and downwind values
BlueSky Air Quality Monitor 8143
Model Number: 8143-B1
The TSI BlueSky™ Air Quality Monitor is a lightweight, laser-based particle instrument designed to simultaneously measure PM2.5 and PM10 mass concentrations, as well as temperature and relative humidity. The device purchase includes a subscription to both TSI Link™ Software (Premium account) and Data Services for one, two or three years depending on your choice.
Product Details
As an Internet of Things (IoT) solution, these hyperlocal, cloud-based air quality monitors offer data interfacing using WiFi, and comes standard with an SD memory card for duplicate date storage, software and cloud data services. While specifically designed for outdoor environmental monitoring, BlueSky Air Quality Monitors can also be utilized inside buildings, homes and manufacturing facilities to measure indoor air quality. Also interested in monitoring for common outdoor pollutants? Check out our BlueSky 8145 model that measures CO, CO₂, NO₂, SO₂, O₃ in addition to the traditional particulate matter (PM) mass concentrations, temperature, relative humidity (RH), and barometric pressure (BP).
What’s Included:
- 1 BlueSky Air Quality Monitor
- 1 IP68 Rated 5V Power Supply
- 1 Mounting Bracket
- 1 Mounting Screw
- 2 Zip Ties
- 1 Micro-SD Card (installed)
- Access to TSI Link Premium Software
- Access to TSI Link API Data Services
Features and Benefits
- Precision data – TSI factory-calibrated PM sensor with the option to program a custom calibration factor
- Real-time map of live data – ability to stream and display real-time data from the cloud using WiFi, without additional software or an app
- Unique laser-based light scattering particle sensors – simultaneously outputs PM1.0, PM2.5, PM4.0, PM10, temperature and humidity
- Designed for outdoor use – performs consistently in a wide range of humidity and temperatures, and protected from rain, bugs and direct sunlight
- Data download – from the removable SD card, CVS export on TSI Link Solutions, or API Data Services
- Data buffering – internally logs data (up to 2 weeks at 15 min interval via on board memory) for data redundancy
- Easy and quick installation
- WiFi Compatability: 2.4 GHz (802.11b/g/n)
