Console – Driven Force Test System

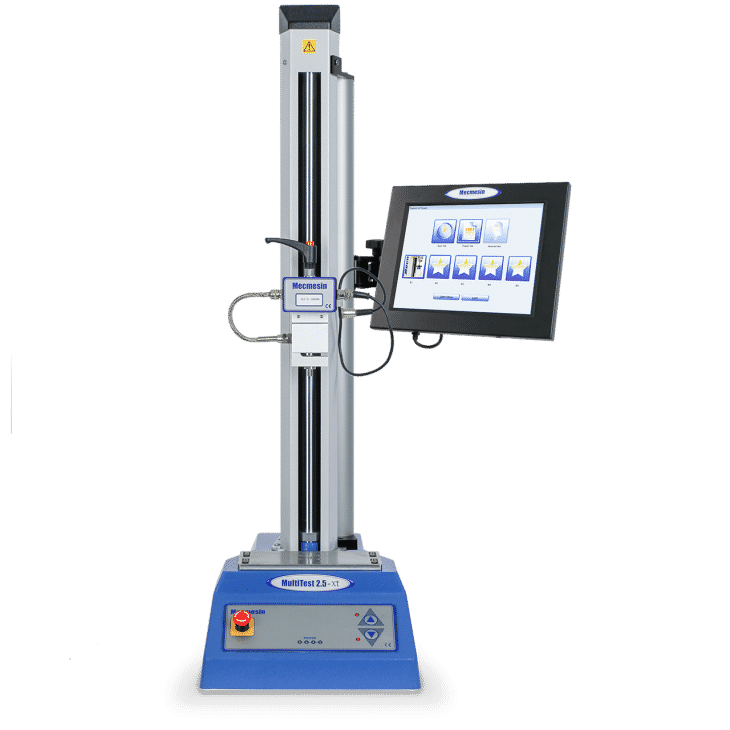

MultiTest-xt
Mecmesin MultiTest-xt universal testers are designed for use directly within the manufacturing environment. They require minimal training to operate, and provide quick, accurate and repeatable production-line quality conformance tests. With the press of a couple of buttons, sample throughput is maximized, while clear color-coded pass/fail indicators show instant results. A MultiTest-xt system provides rapid feedback for a production line, which can easily reduce wastage.
Behind the system lies our powerful Emperor™ software that allows you to create your own library of tensile or compression tests, suited precisely to your products and requirements. The software controls the system, tracks the test sample, the batch, and the operator, and captures the detail you require. It performs calculations on the stored results, and interfaces with SPC systems and other analytical packages.
Single-column force tester
The single-column MultiTest-i testers are the perfect solution for measuring forces up to 5 kN (1100 lbf) on a huge variety of components made from almost any material, either during their normal operation or when being pulled/pushed until they deliberately fail or break.
Their compact design ensures they occupy very little space on the bench-top and their intuitive controls make them easy to use, even for novice operators.
Key Feature:
- Self-contained system – no PC required
- Measures force and displacement
- Create and store as many test programs as you need
- Five ‘favourite’ buttons for direct access to frequently used programs
- Results can be displayed instantly as ‘pass’ or ‘fail’
- Upgradable to run programs written in Mecmesin’s powerful Emperor™ software
- Password protection to safeguard programs and configurations
- Auto-recognition and configuration of loadcells

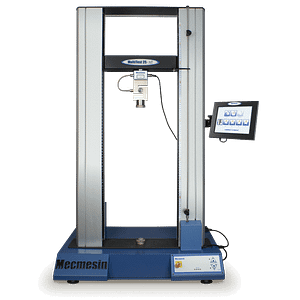

Twin-column force tester
The twin-column MultiTest-i testers are the perfect solution for measuring forces up to 50kN (11,000 lbf) on a huge variety of components made from almost any material, either during their normal operation or when being pulled/pushed until they deliberately fail or break. The design features dual-columns with twin-ballscrews ensuring excellent rigidity and strength whilst their intuitive controls make them easy to use, even for novice operators.
Key Feature:
- Self-contained system – no PC required
- Measures force and displacement
- Create and store as many test programs as you need
- Five ‘favourite’ buttons for direct access to frequently used programs
- Results can be displayed instantly as ‘pass’ or ‘fail’
- Upgradable to run programs written in Mecmesin’s powerful Emperor™ software
- Password protection to safeguard programs and configurations
- Auto-recognition and configuration of loadcells
