ST-TSB

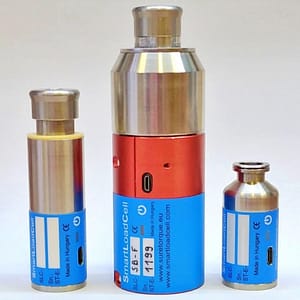

SB-F is measuring Top Load force in the production, on the running capper machine
Can be used for measuring:
– crown cork,
– ROPP,
– Crimp capping machines
SB-F can accommodate to different container sizes and shapes:
– Size and shape can be modified with dummy bottles to allow integration of the SB-F
– Changeable stainless steel neck fitment according to the bottle neck shape
SmartLoadCell units can be connected to any Android smartphone (or tablet) via Bluetooth (over Android 4.4). The SmartLoadCell application offers wide range of test modes and test settings. Results can be stored, reviewed and sent to pc.
Smart Bottles are shipped calibrated, with traceable calibration certificate.
- Measuring Top Load on running capper, in production
- Possibility of measuring dynamic top load
- No need for stopping the production for testing
- Wireless
- Force-time graph drawing and saving
- Range analysis
- High storing capacity on the smartphone
- Graph zooming and scrolling in the history
- Adding comment to the results before saving
- Free Android application
- Included pc software
- 3 years warranty
Additional Information
| Included accessories | 1 neck adapter |
| Smartphone requirement | 1 GB RAM, 1 GHz Processor, 4 GB ROM |
| Android version | Android 4.4 or higher |
| Measuring range | 400 kg or 700 kg (SB-F – crown & ROPP) , 30 kg (SB-CF – crimp) |
| Units of measurement | kg, N, Lb, Ton |
| Displayed values | Actual, Max1, (Max2), torque-time graph |
| Accuracy | +/- 0,5% F.S. |
| Safe Overload | 150% |
| Maximum measuring frequency | 400 Hz (2.5 ms) on each channel |
| Range analysis | Yes – In range / under range / over range, with Over Range Alarm function |
| Capable closure types | Crown corks, ROPP or crimped closures |
| Maximum sample size | Any |
| Calibration kit | not available |
| Operation time | 12 hours (2-3 hours by SB-mini) |
| DC supply | Micro USB |
| Bluetooth range | 20-40 m on air |
| Included software | Android application, Data manager for PC |
| Memory | Thousands of results (phone memory) Maximum length of recordings: 5000 points |
| Stored data’s | Measurement nr, peak results, date, time, graph, instrument serial number, comment, calibration date |
| Resistance grade | IP 65 |
| Language | English |
| Dimensions: Footprint / Height | D50 x 146.5 mm (D30 x 100 @ SB-F mini) |
| Net weight | 0,9 kg (0.2 kg @ SB-T mini) |
| Shipping packaging | Heavy duty waterproof case |
| Shipping dimensions | No |
| Shipping weight | No |
| Country of Manufacture | Hungary |
| Warranty | 3 years |
SmartLoadCell has 4 different measuring modes. Relevant modes for this application:
 |
 |
| Single peak mode | Continuous mode |
Results:
What to do with your results?
- Add comments
- Save
- View from the history – graph can be zoomed and scrolled
- Send to pc on Bluetooth, Wi-Fi, mobile internet or USB cable
On the PC: the included data manager program can:
- convert results to csv-file (excel compatible)
- display the results with graphs
- statistical analysis of the results
- create report from the individual results or from the statistical analyses
